The Ultimate Precision Tool
LGX Laser Grader

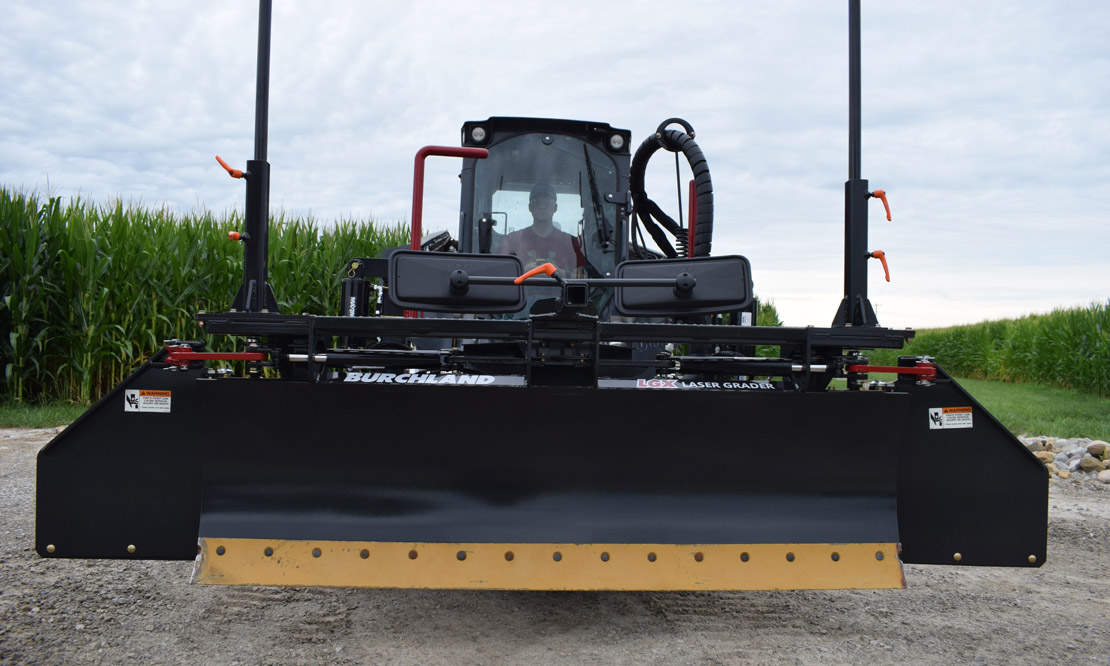

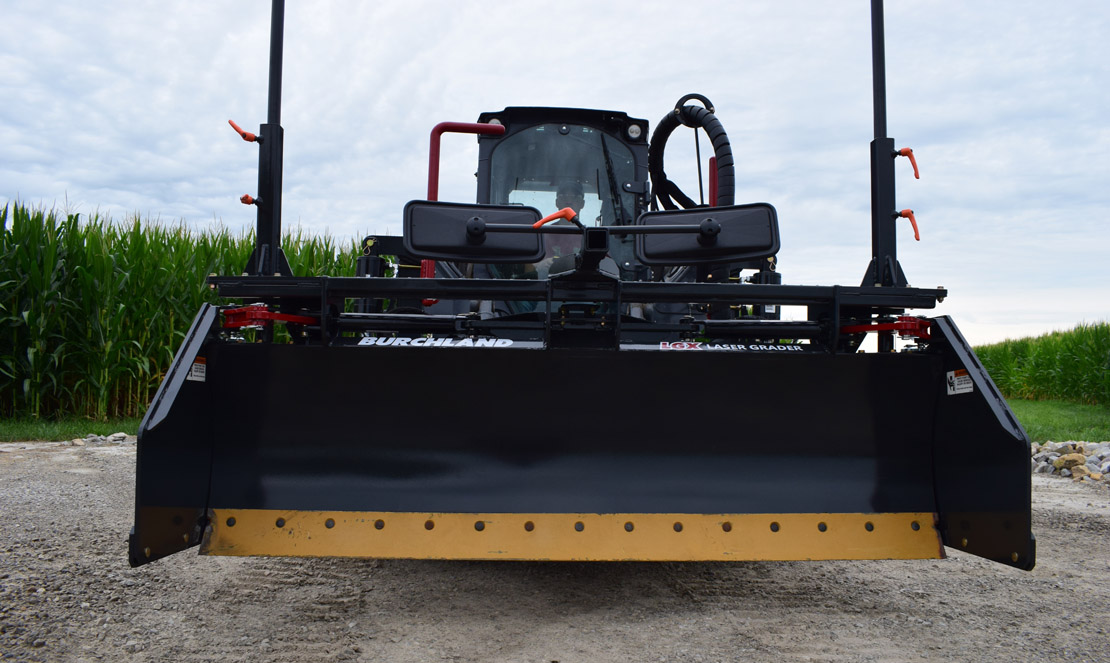

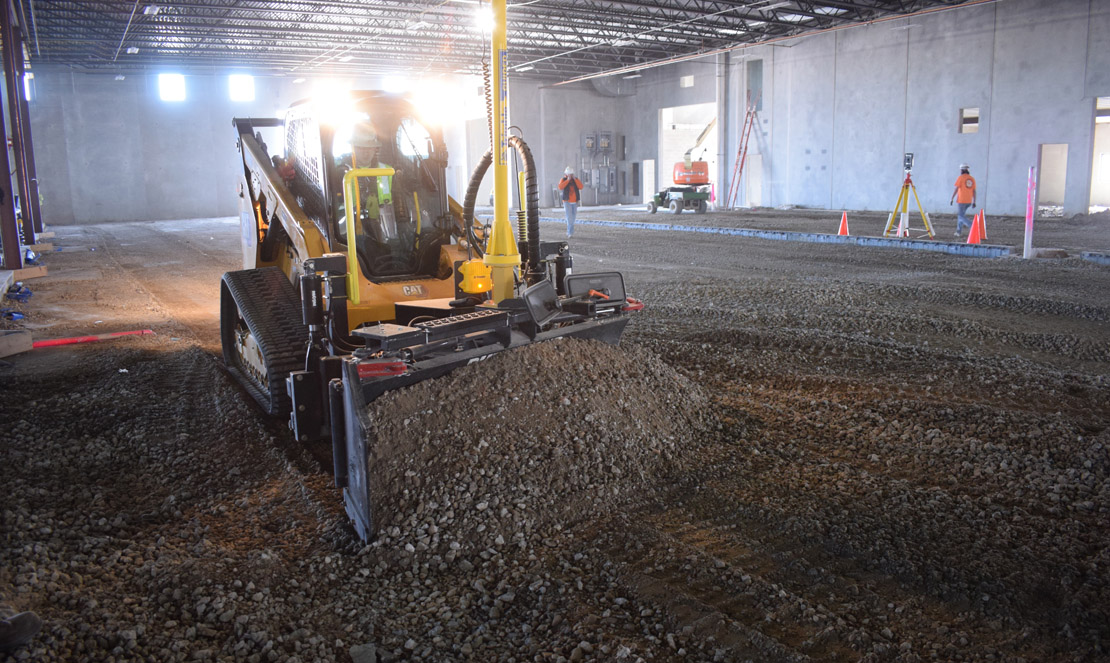

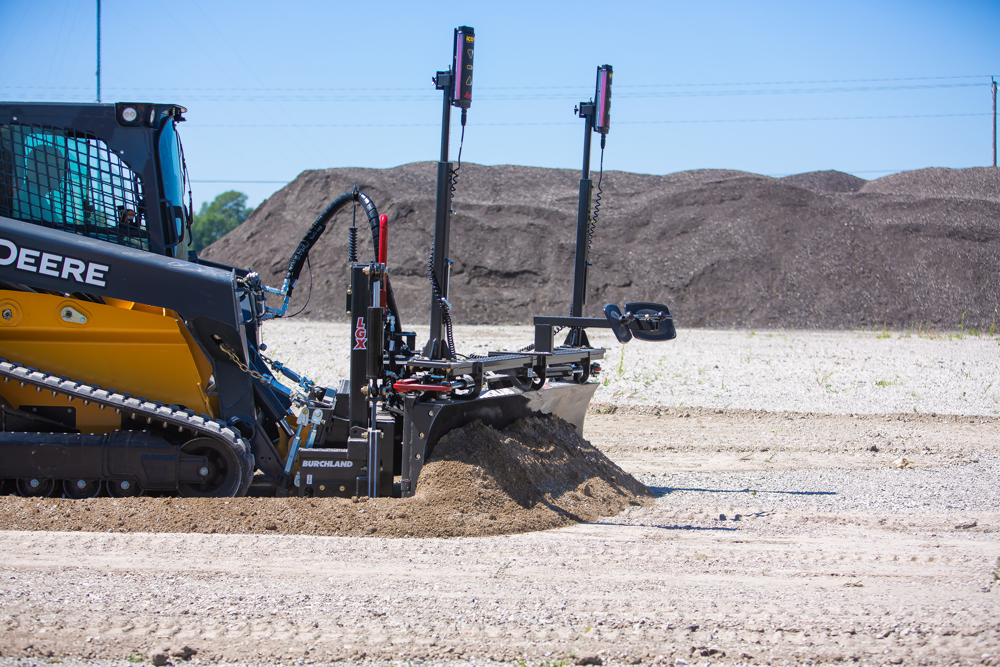

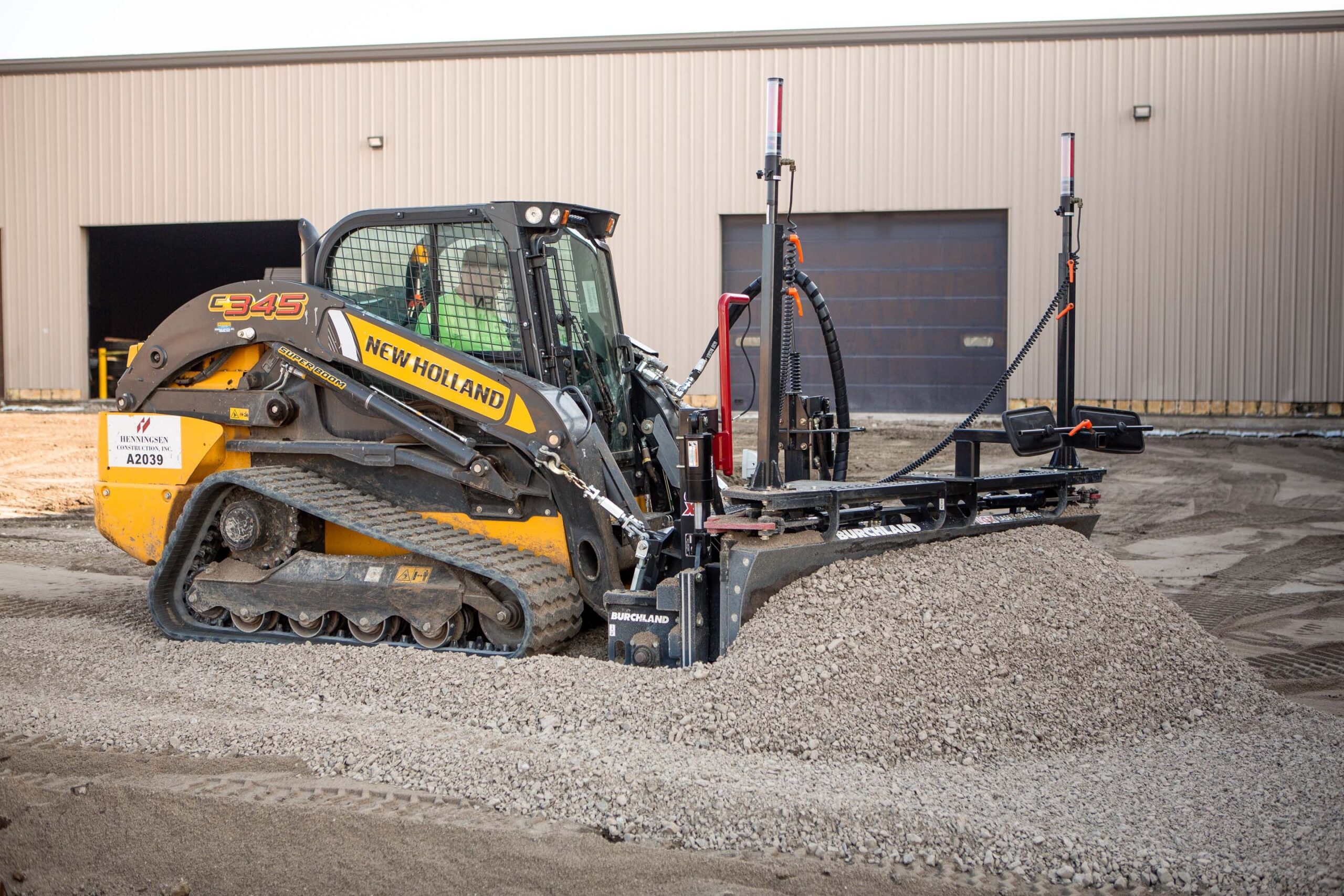

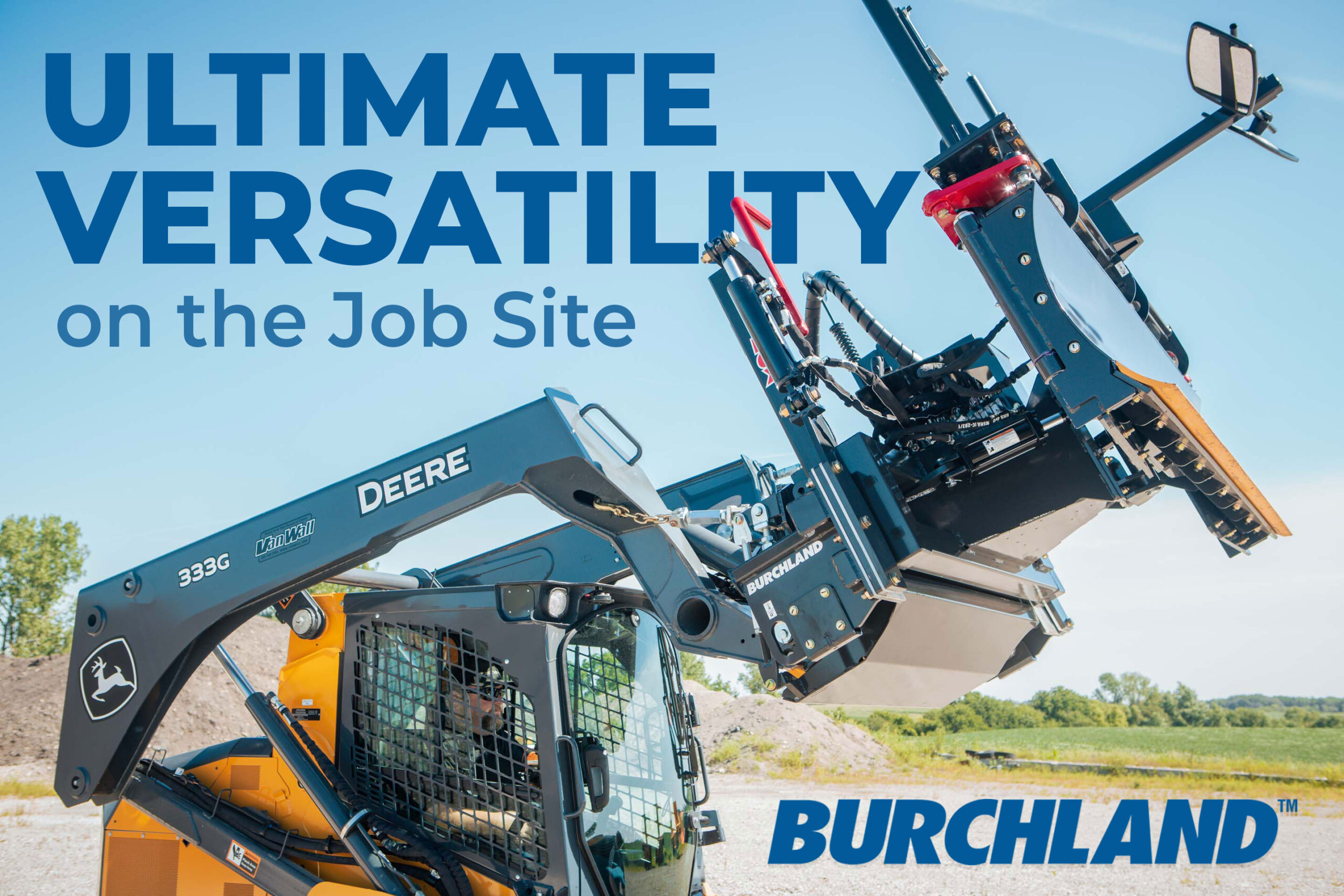

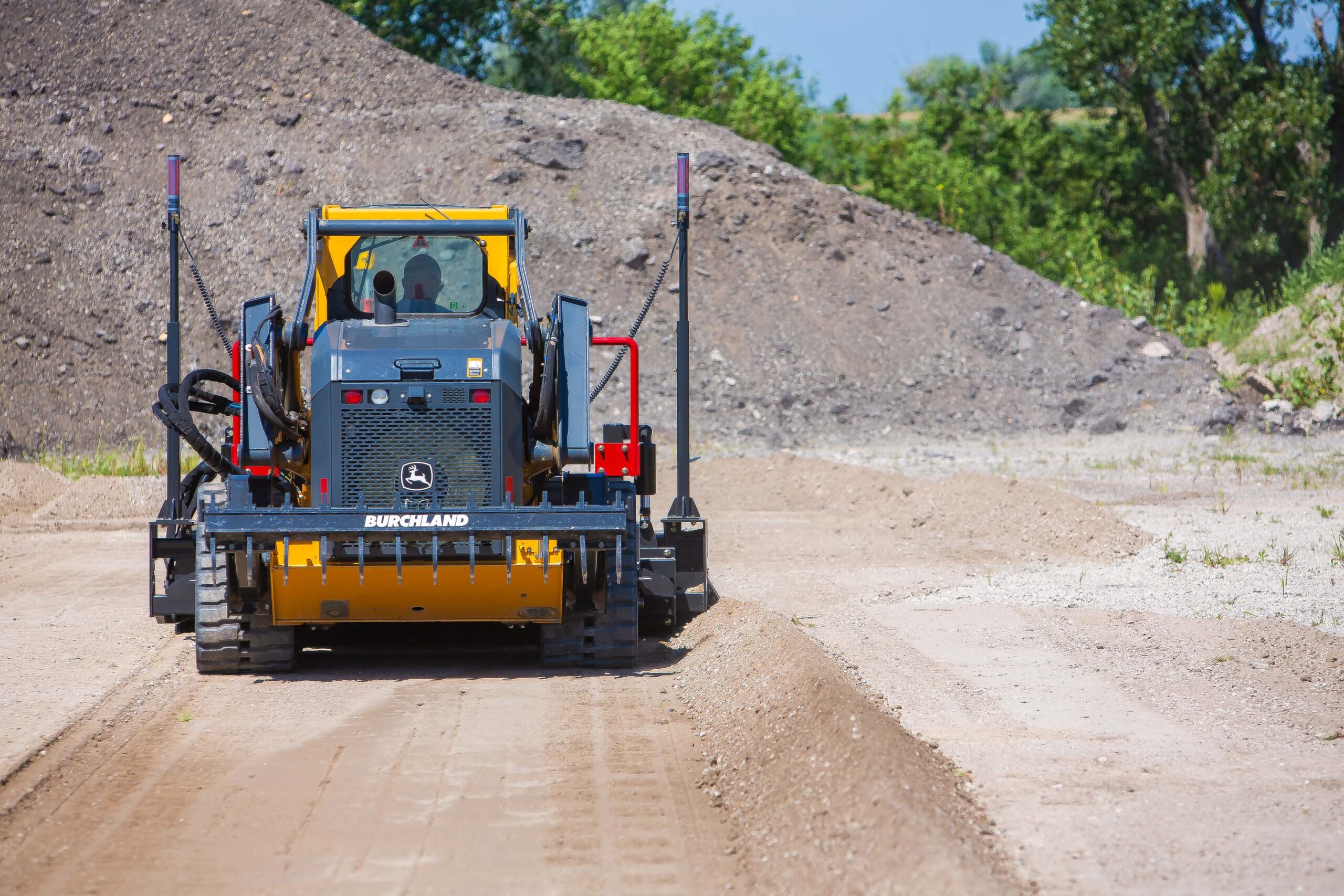

The LGX Burchland Laser Grader comes ready to produce precise grading with lasers, GPS, total stations, and sonic tracers. This system allows the operator to push fill into corners and changes in elevation, all while maintaining a precise grade.
Or call 641-498-2063 to speak to an expert!
made in the USA
Features
Details
Specifications
Videos
Downloads
Precision Grading Made Easy

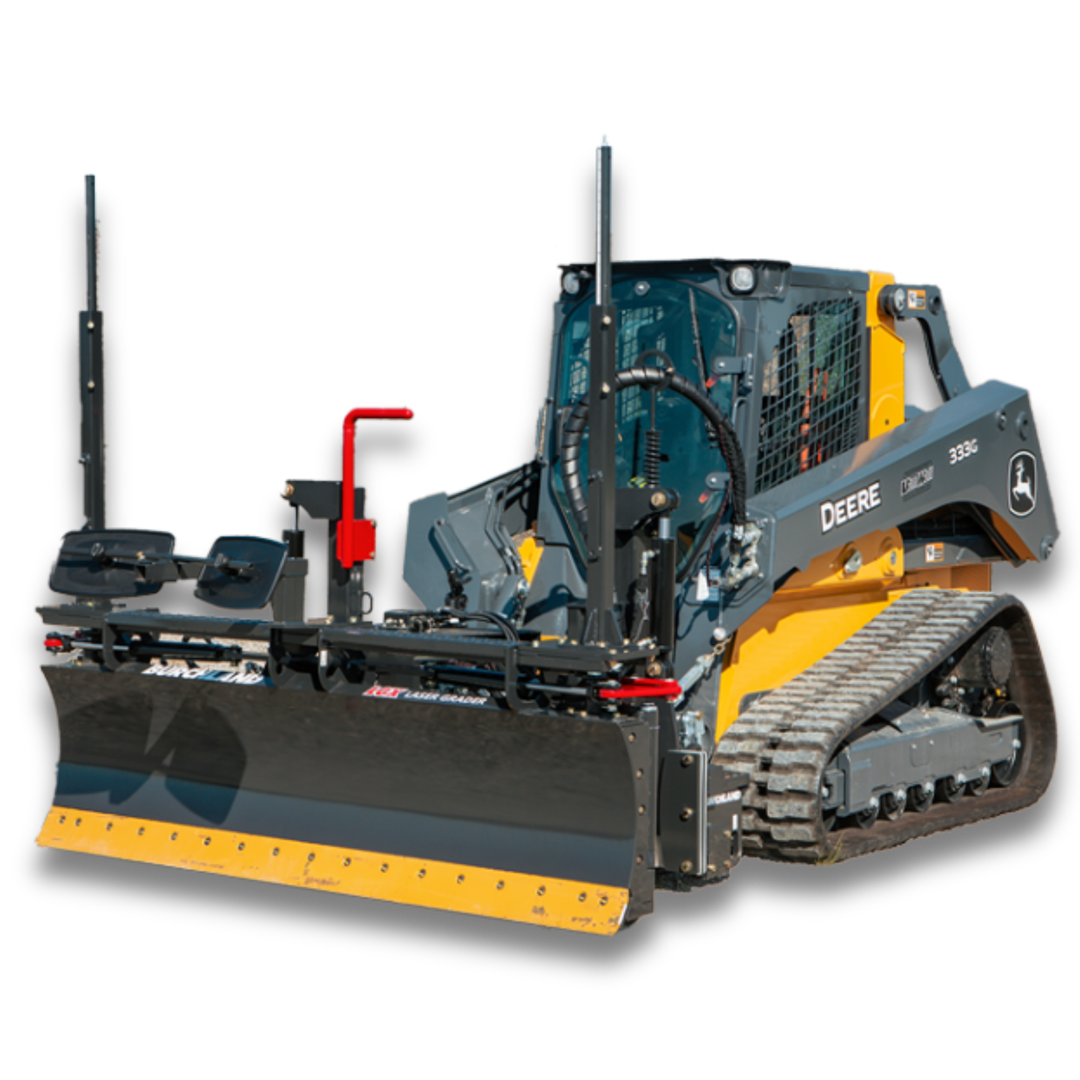

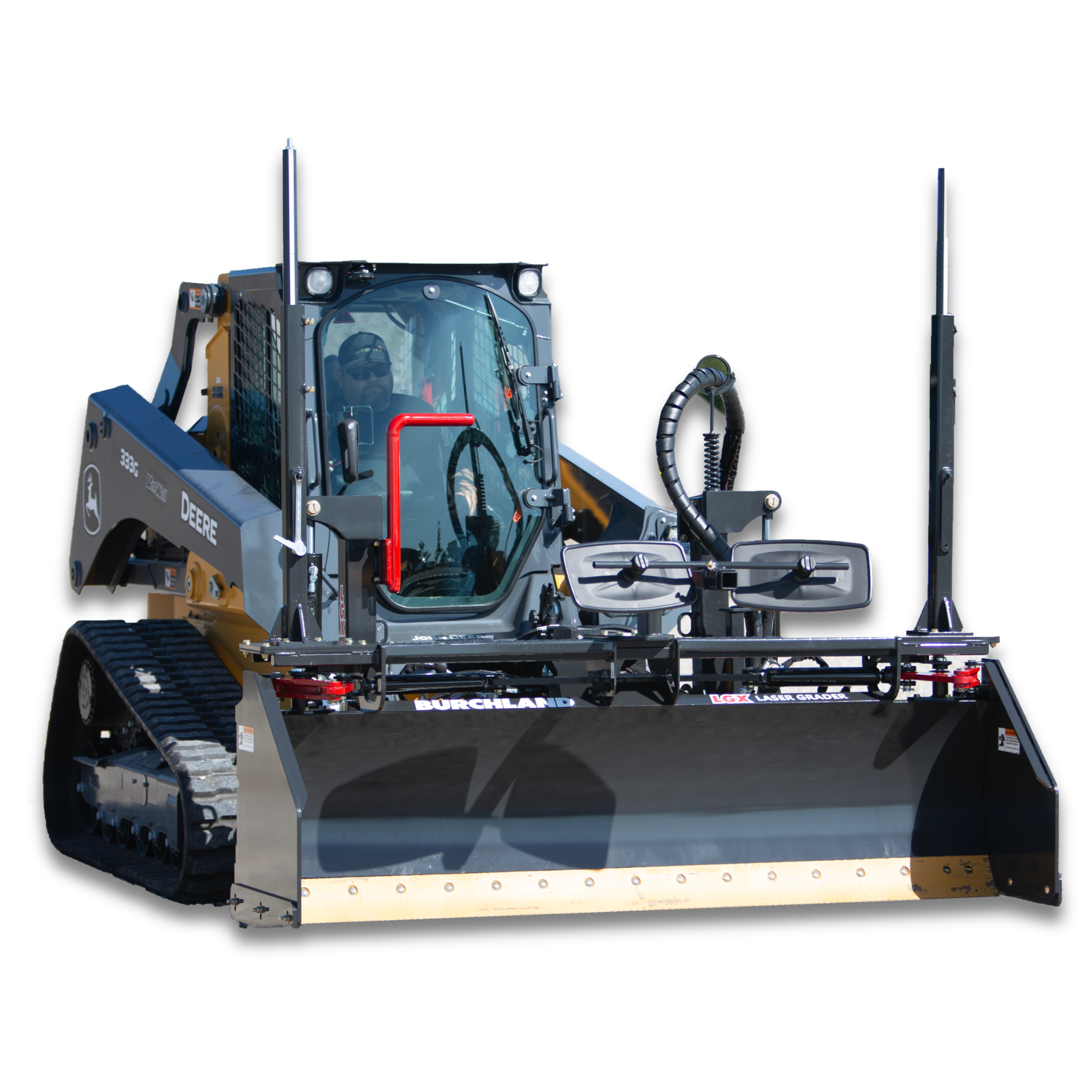

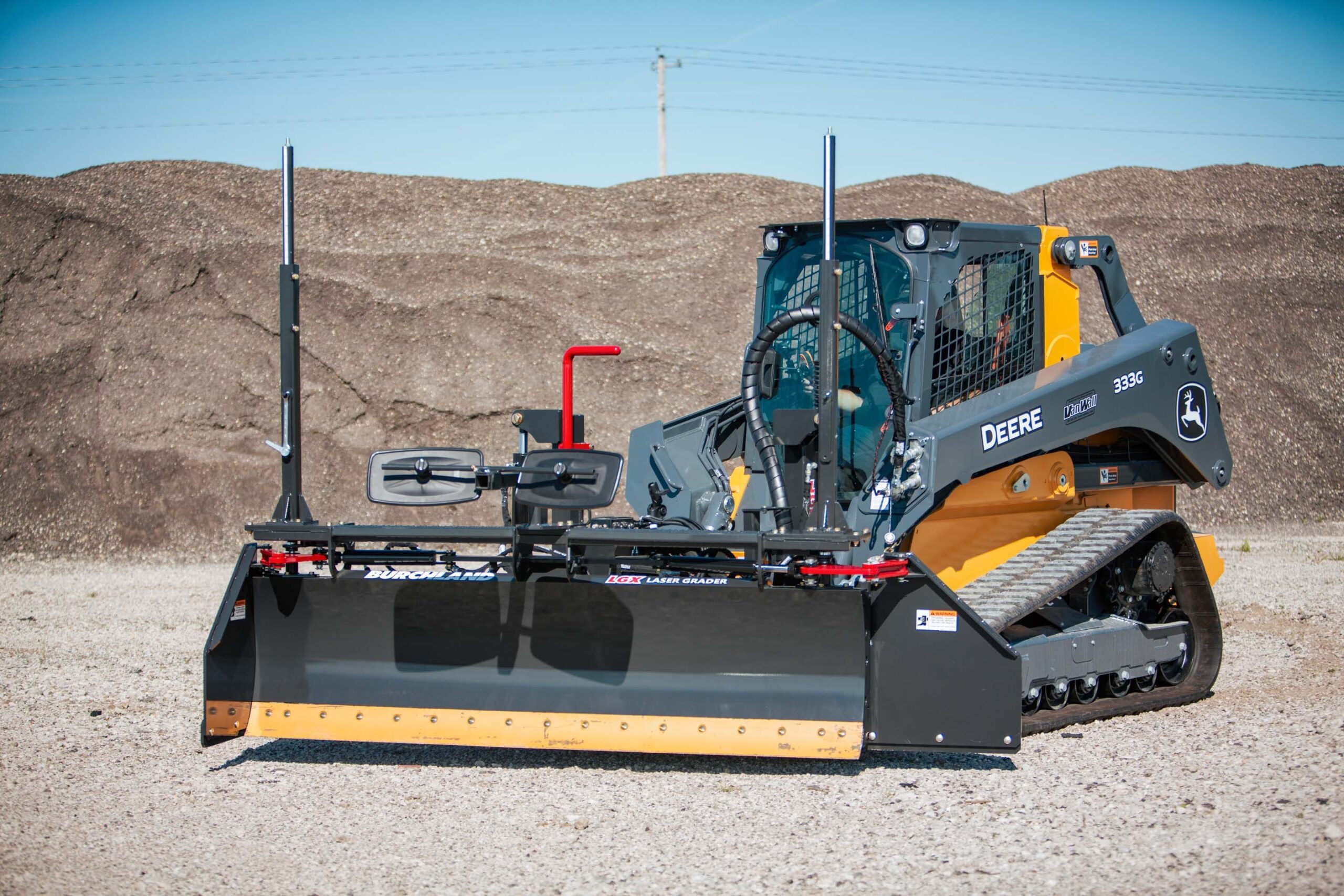

The LGX Burchland Laser Grader is a versatile precision grader attachment that delivers a precise grade on many different styles of job sites. This innovative attachment can be configured in many different ways all from the operator’s seat. From parking lots and highways to athletic fields and driveways, you’ll be able to create an extremely smooth finished grade with this simple, highly durable laser grader.

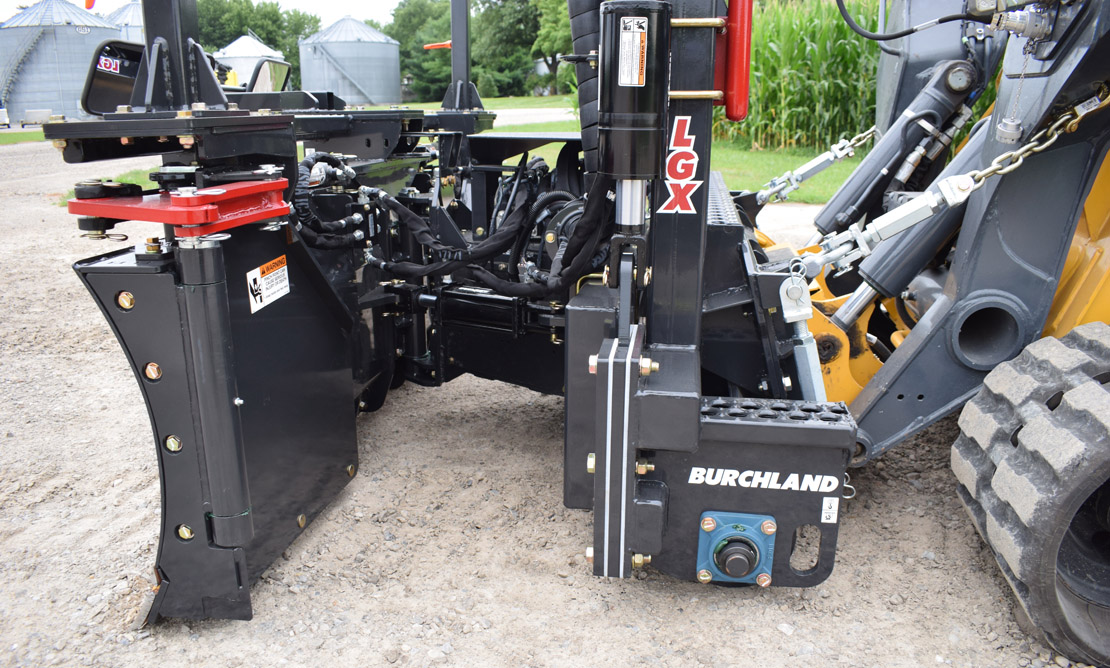

- Universal skid steer mount

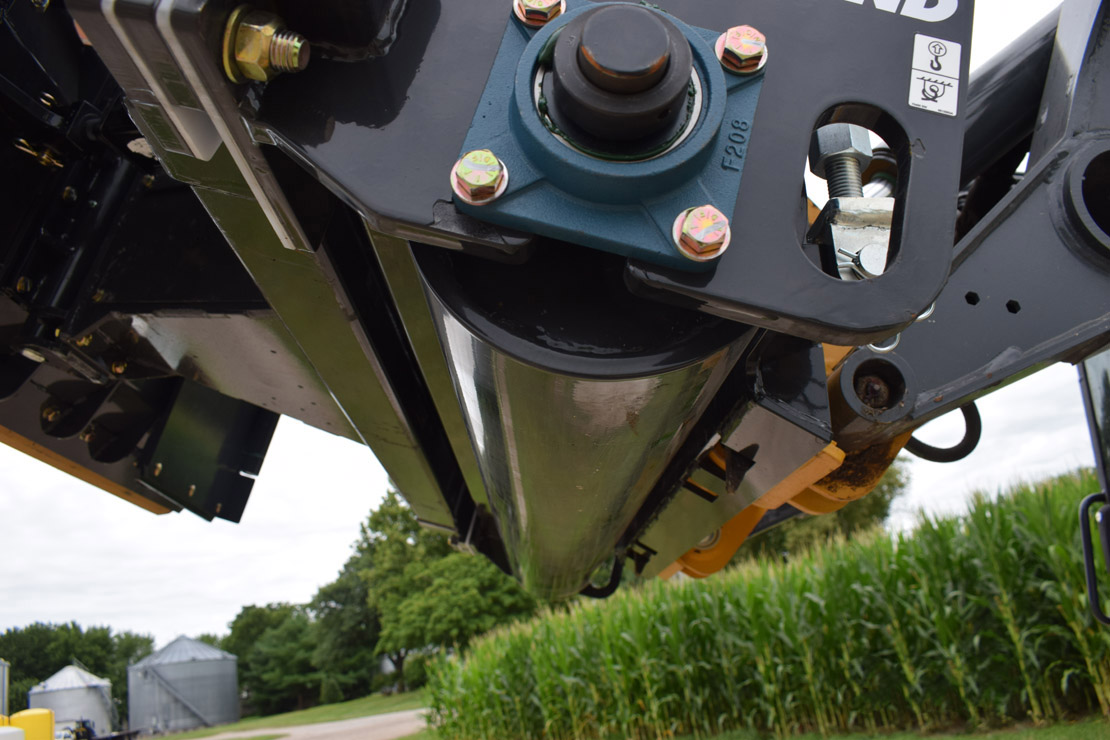

- Mid-mounted stabilizing skid plate

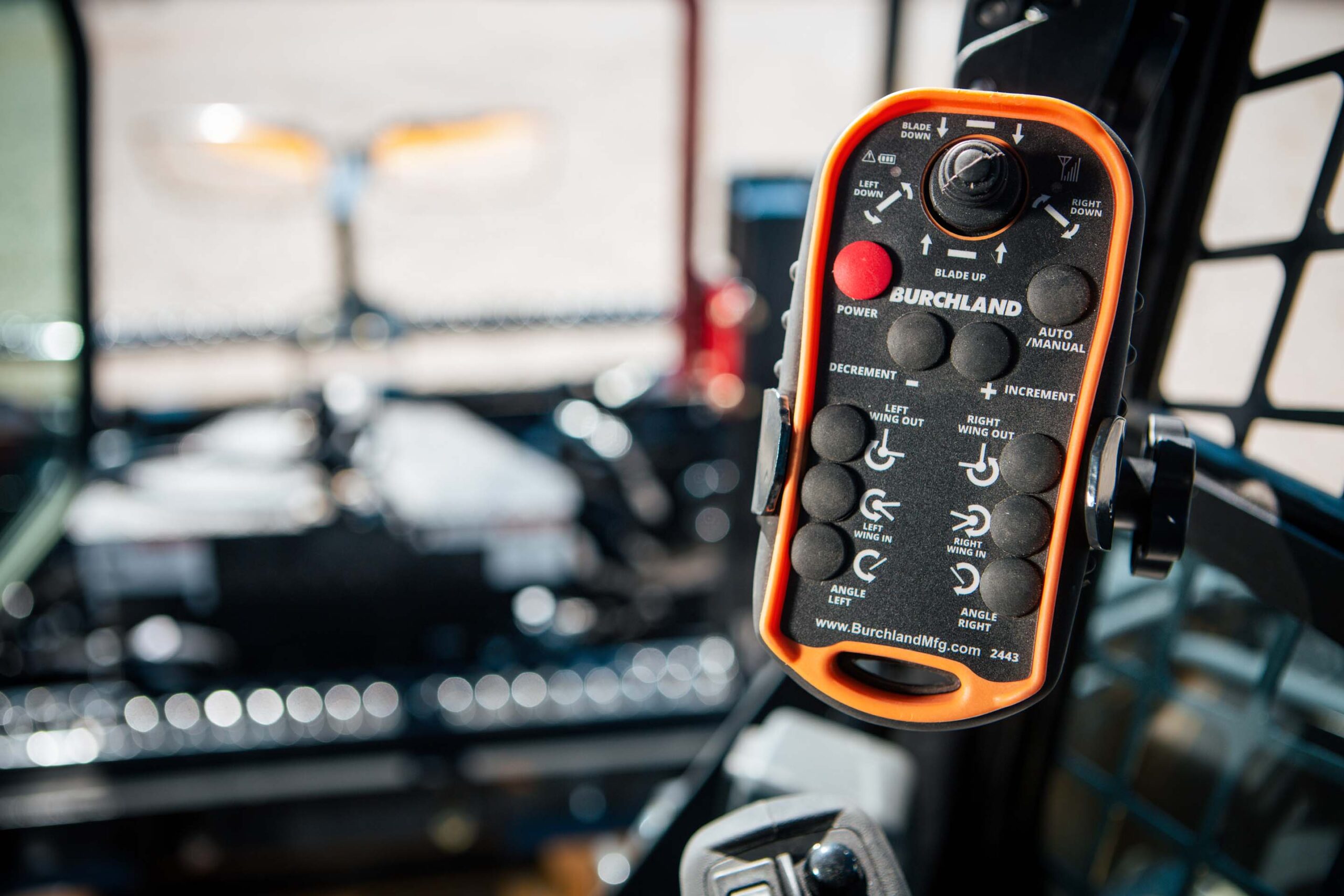

- Can be operated in auto or manual mode
- 270 degree hydraulic wing rotation
- Laser, GPS, Total Station, Sonic tracer and string line capable
Precision and Productivity in One Attachment
Advanced Control Compatibility
-
Compatible with lasers, GPS, total stations, and sonic tracers
-
Works with all major machine control brands
-
Delivers highly accurate and detailed grading
Exceptional Versatility
-
Perfect for preparing sub-grade for:
-
Parking lots
-
Streets and highways
-
Athletic fields
-
Driveways
-
Any job requiring precise grading
-
Increased Efficiency
-
Saves time and labor by eliminating manual corner filling
-

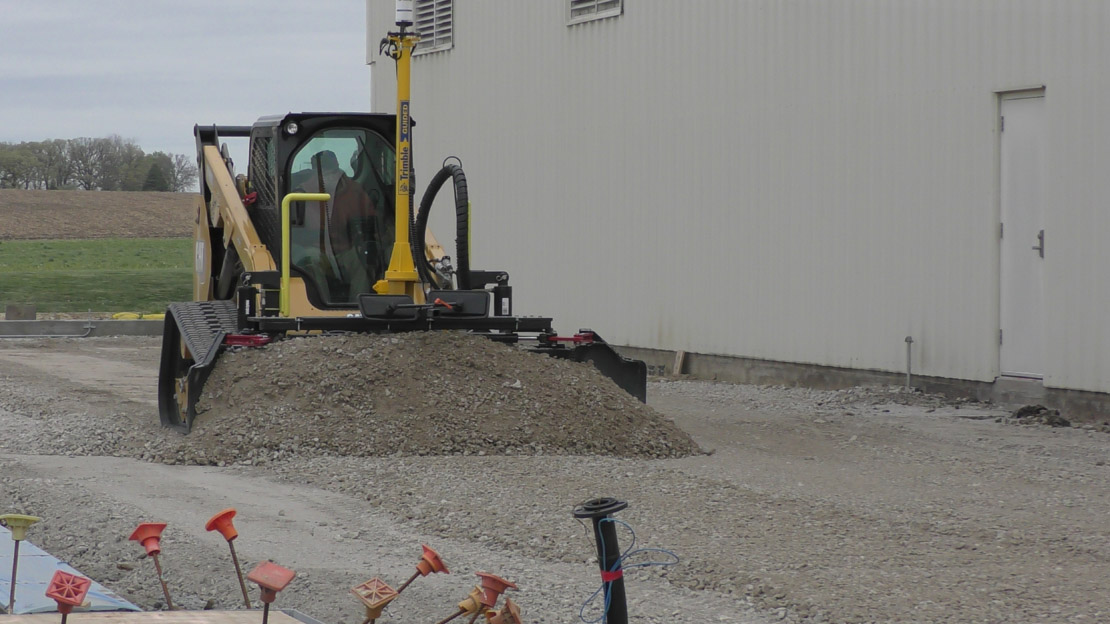

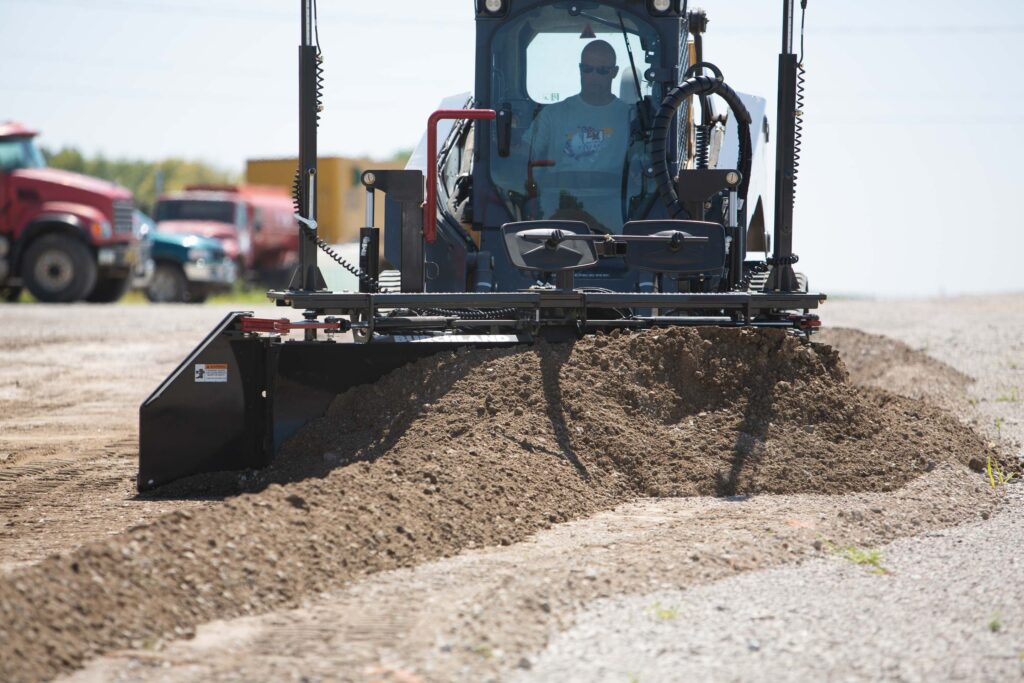

Pushes fill into corners and elevation changes with ease
-
Outperforms many competitor models in productivity
Superior Design & Functionality
-
Heavy-duty skid steer-mounted grader
-
Multiple configurations for enhanced control
-

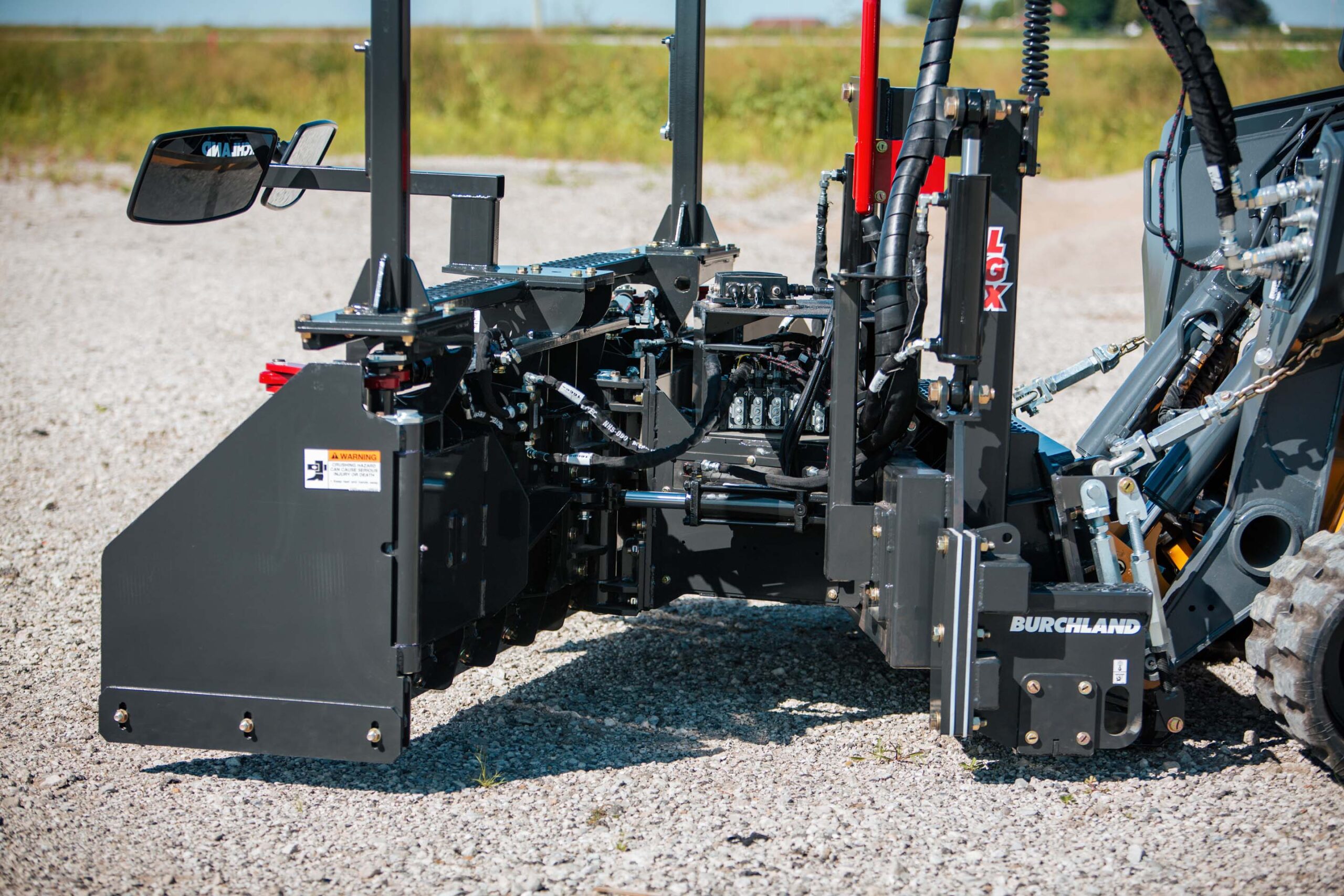

Endplates rotate hydraulically from behind the blade to forward-facing
-
Converts to a box blade as needed
-
Hydraulic valve system provides smooth, precise grading in tough conditions
Why Choose the LGX Laser Grader?
Reliable, efficient, and built for maximum production—this attachment is a top choice for contractors who need consistent and professional-grade results.
| 7ft Blade Width | 7.5ft Blade Width | 8ft Blade Width | |
| Weight | 2816 | 2948 | 3000 |
| Height (Ground to Top of Rolled Blade) | 24.5 | 24.5 | 24.5 |
| Length (Back to Front of Blade) | 51.8 | 51.8 | 51.8 |
| Width | 89.6 | 95.6 | 101.6 |
| Rotated Blade Cut Width | 76.1 | 81.6 | 87 |
| Roller Width | 66 | 66 | 66 |
| Center of Mass (From Back to Hitch) | 27 | 28 | 27 |
Precision Grading Made Easy
Laser Grader Full Features
See It In Action – LGX Laser Grader
Hawkins Construction LGX Laser Grader Testimonial
Technical Specification PDF Download
LGX Brochure
LGX Parts Book
LGX Operators Manual
Features
Precision Grading Made Easy
The LGX Burchland Laser Grader is a versatile precision grader attachment that delivers a precise grade on many different styles of job sites. This innovative attachment can be configured in many different ways all from the operator’s seat. From parking lots and highways to athletic fields and driveways, you’ll be able to create an extremely smooth finished grade with this simple, highly durable laser grader.

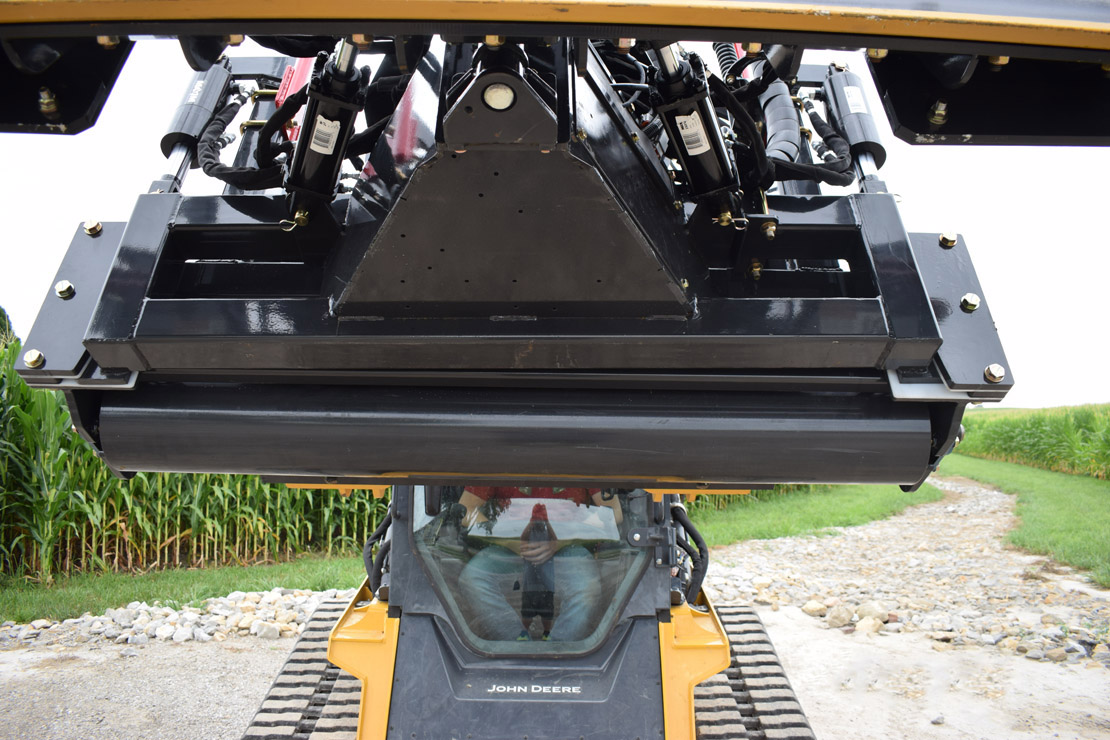

- Universal skid steer mount
- Mid-mounted stabilizing skid plate
- Can be operated in auto or manual mode
- 270 degree hydraulic wing rotation
- Laser, GPS, Total Station, Sonic tracer and string line capable
Details
Precision and Productivity in One Attachment
Advanced Control Compatibility
-
Compatible with lasers, GPS, total stations, and sonic tracers
-
Works with all major machine control brands
-
Delivers highly accurate and detailed grading
Exceptional Versatility
-
Perfect for preparing sub-grade for:
-
Parking lots
-
Streets and highways
-
Athletic fields
-
Driveways
-
Any job requiring precise grading
-
Increased Efficiency
-
Saves time and labor by eliminating manual corner filling
-
Pushes fill into corners and elevation changes with ease
-
Outperforms many competitor models in productivity
Superior Design & Functionality
-
Heavy-duty skid steer-mounted grader
-
Multiple configurations for enhanced control
-

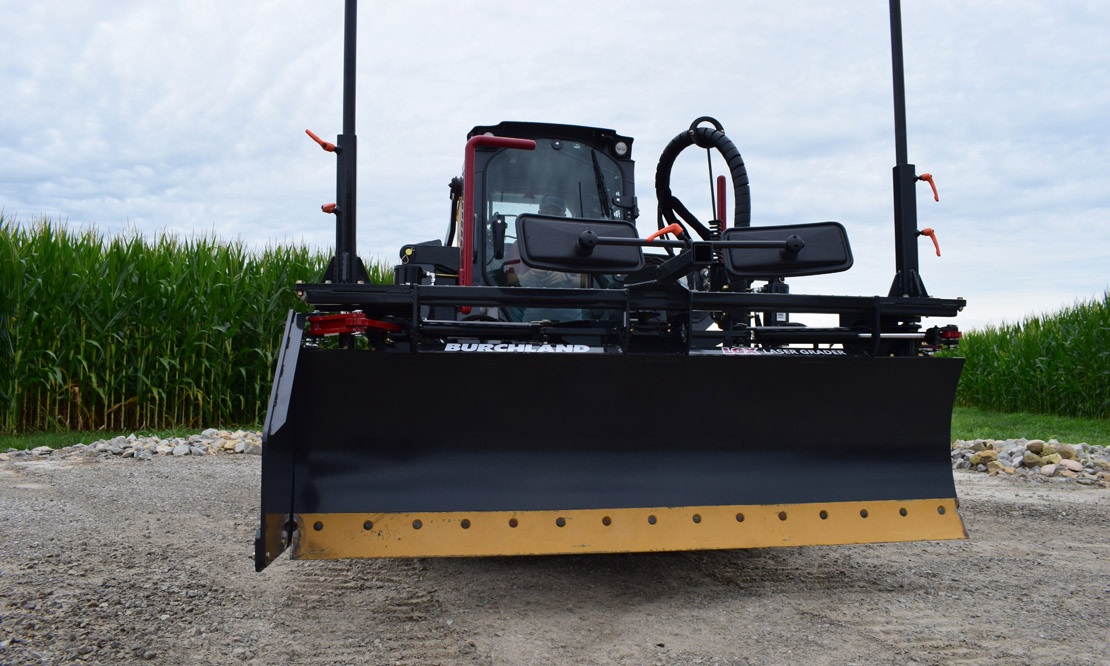

Endplates rotate hydraulically from behind the blade to forward-facing
-
Converts to a box blade as needed
-
Hydraulic valve system provides smooth, precise grading in tough conditions
Why Choose the LGX Laser Grader?
Reliable, efficient, and built for maximum production—this attachment is a top choice for contractors who need consistent and professional-grade results.
Specifications
| 7ft Blade Width | 7.5ft Blade Width | 8ft Blade Width | |
| Weight | 2816 | 2948 | 3000 |
| Height (Ground to Top of Rolled Blade) | 24.5 | 24.5 | 24.5 |
| Length (Back to Front of Blade) | 51.8 | 51.8 | 51.8 |
| Width | 89.6 | 95.6 | 101.6 |
| Rotated Blade Cut Width | 76.1 | 81.6 | 87 |
| Roller Width | 66 | 66 | 66 |
| Center of Mass (From Back to Hitch) | 27 | 28 | 27 |
Videos
Precision Grading Made Easy
Laser Grader Full Features
See It In Action – LGX Laser Grader
Hawkins Construction LGX Laser Grader Testimonial
Downloads
Technical Specification PDF Download
LGX Brochure
LGX Parts Book
LGX Operators Manual
Get precision grading done faster— put the LGX Laser Grader to work on your next job.
Or give us a call at
Customer Testimonials
“When we first got the grader it was really appealing because we could hook it onto a skid loader and get in tight spots and more confined areas that we wouldn’t get into with a dozer or a bigger machine. The grader is pretty unique for us because we do a variety of different projects ranging from roads to parking lots. The grader is accurate within a quarter inch and it really takes out a lot of the fine work that you would do with a laborer.”
– Trevor Drish | Drish Construction
“We have Cat, John Deere, Bobcat and if we don’t own them, we may be renting, but we’re not locked into any certain brand of equipment. You can attach them to any brand. I would recommend Burchland, what I notice is what I look at in all equipment is how they’re built if they’re going to last.”
— Ron Mockelman | Hawkins Construction
Frequently Asked Questions
We understand you may have questions about our different grading equipment. We are here to provide you with quick and easy answers to the most common inquiries about our products, services, ordering, and more.
How accurately does the LGX Laser Grader grade surfaces?
Contractors report sub‑inch precision—typically within about ¼″—on tight job-site spots, asphalt prep, and parking lots.
What terrain and applications suit the LGX?
It’s ideal for tight or confined sites such as driveways, athletic fields, parking lots, highways, and roadside subgrade prep—areas where larger machines don’t fit.
What blade configurations are available?

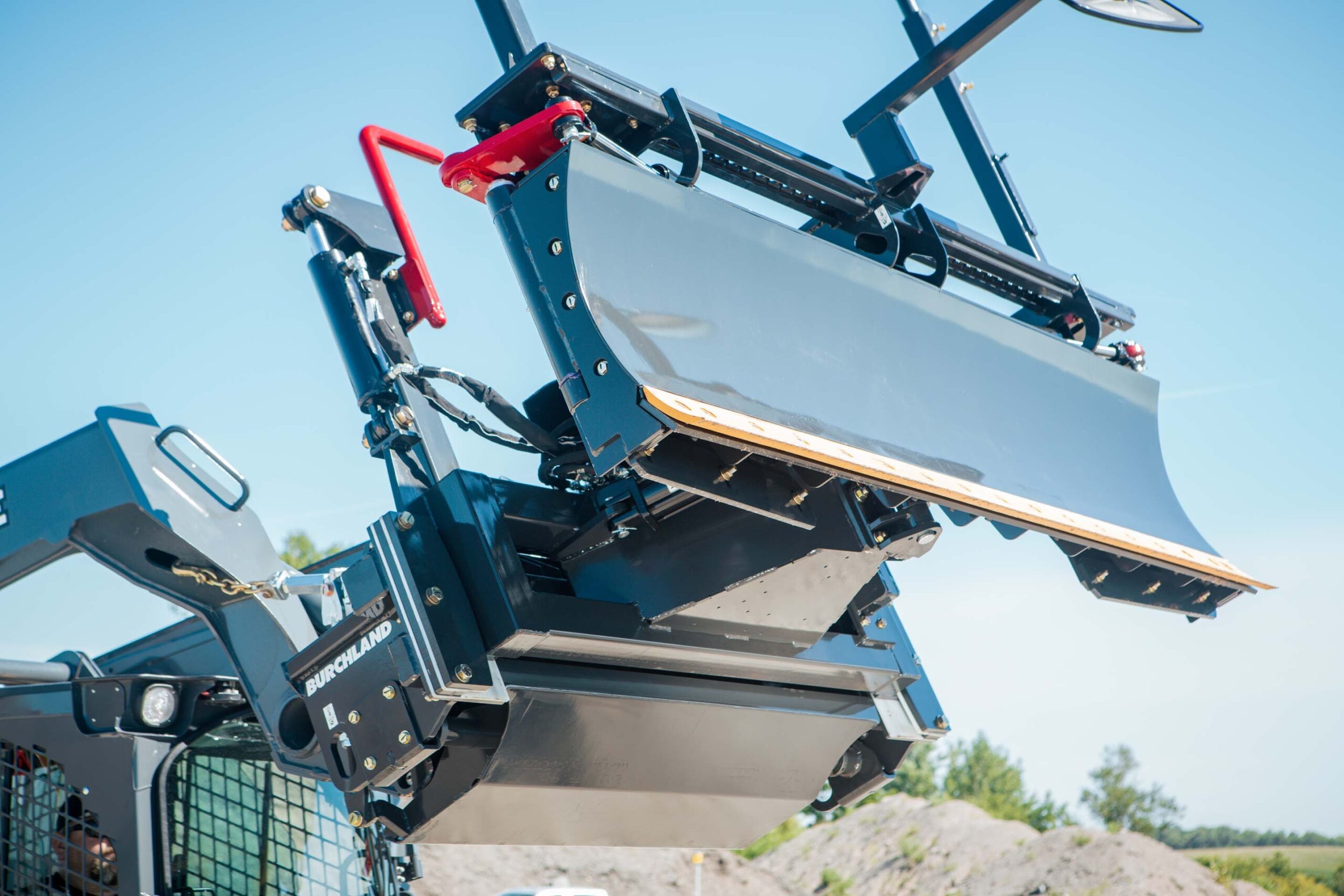

The LGX offers blades available in 7 ft, 7.5 ft, and 8 ft widths. The hydraulically rotating wing plates (270° rotation) allow rapid transformation between a straight grader, box blade, or angled grading setups.
How does mounting work on a skid steer?
It uses a universal skid-steer quick-attach mount, includes a mid-mounted stabilizing skid plate, and integrates easily with hydraulic hookups and control systems.
What are its physical specifications?
Blade widths: 7′, 7.5′, or 8′; Roller width: 66″; Height (~24.5″) and length (about 51.8″) are consistent across models; weights range from approximately 2,816 to 3,000 lb.
Can it replace a box blade or large dozer?
Many users report that the LGX matches the finishing quality of a dozer in confined spaces while being more efficient and versatile. One contractor noted its unique ability to handle fine grading across various project types.
What are the key benefits of using the LGX?
-
Enables precise grading without manual corner filling, saving labor and time.
-
Adapts to multiple job types—from parking lots to road prep.
-
Offers unmatched control and flexibility for tight or confined grading tasks.
Work smarter not harder
Custom Construction Equipment
Burchland Manufacturing offers a variety of products designed to improve your day to day workflow, reduce time on the job site, and provide top notch quality. Check out our other products in the construction industry to find what will work best for you or reach out to learn more about our products.

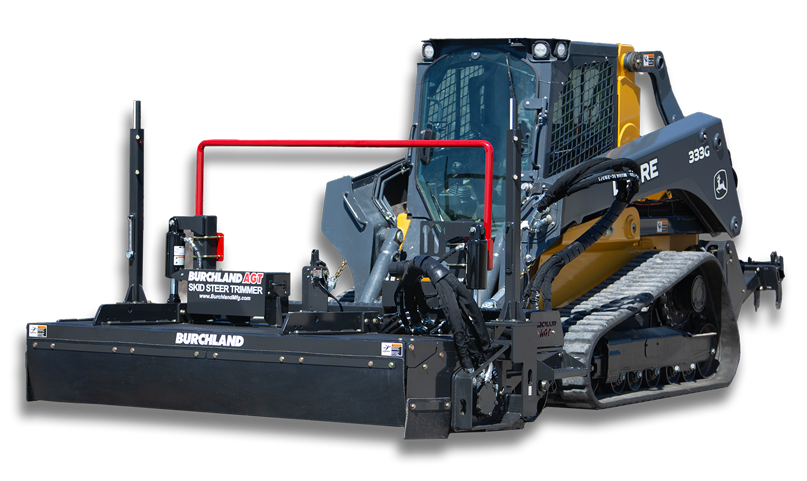

AGT Auto Grading Soil Trimmer
The Burchland Auto Grading Soil Trimmer is a skid steer mounted trimmer designed for site work…
LGX Laser Grader
The LGX Laser Grader is a versatile precision grader attachment that delivers a precise grade on many different styles of job sites…

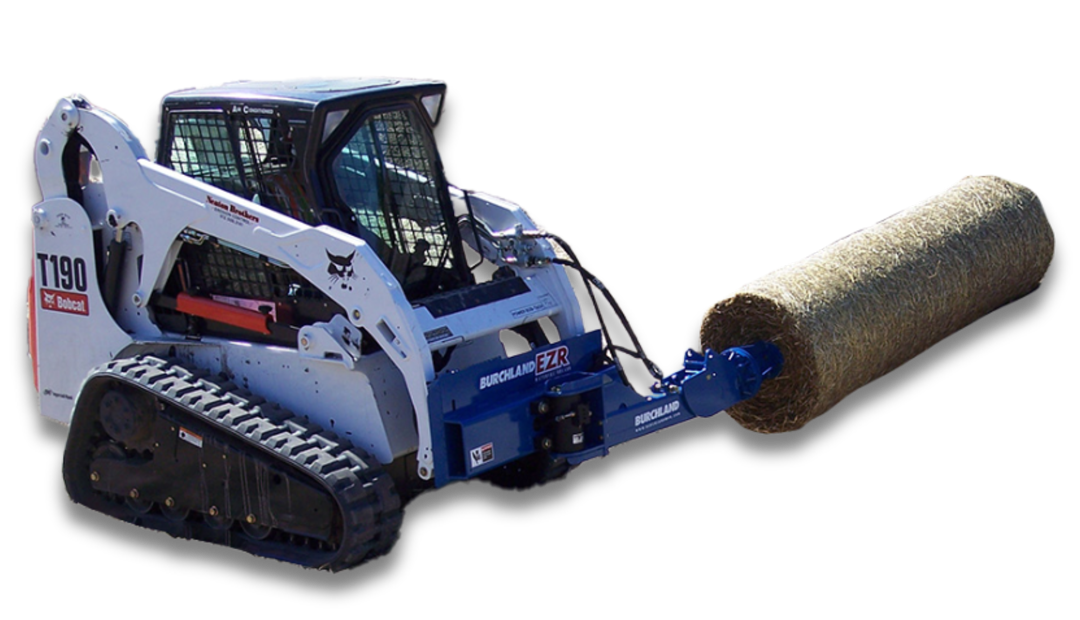

EZR Material Roller
Your workday just got a lot easier. Introducing the Burchland EZR Material Roller…

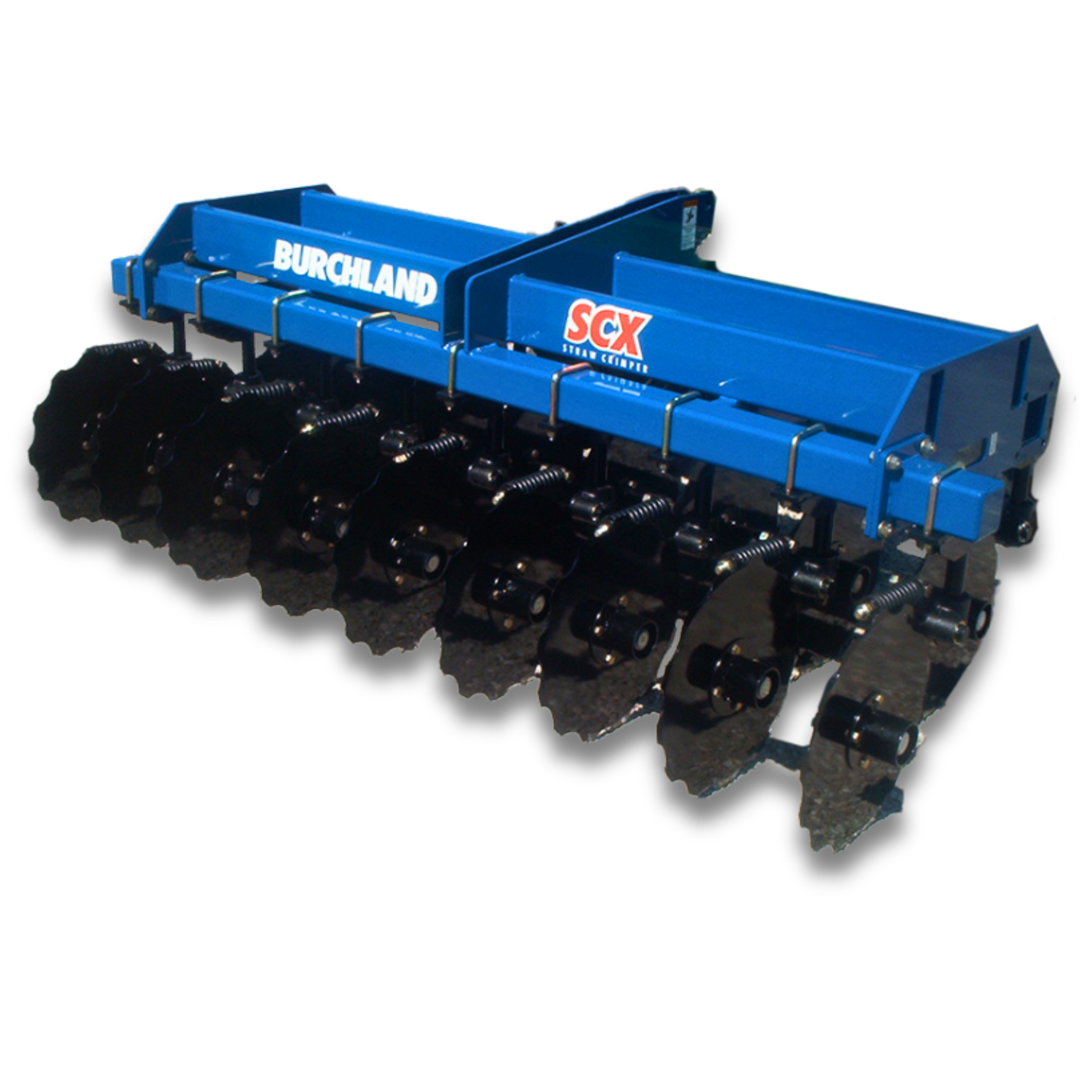

SCX Straw Crimper
