GBX Gravel Box
Burchland Manufacturing creates quality boxes to transport gravel. The bedding boxes are built with protective strips to add strength and make them last. Perfect for construction sites, we manufacture equipment that will increase the speed of completing projects.
Or call 641-498-2063 to speak to an expert!
Features
Details
Specifications
Downloads
Heavy-Duty GBX Gravel Box for Fast Transport
- High-quality gravel boxes that are durably built to handle the wear and tear of heavy equipment on construction sites.
- Our bedding material containers help to reduce waste and increase speed on the job site.
- Tear strips are placed on the floor of the bedding box which increases the strength and helps to prevent wear.
Burchland manufactures high-quality gravel boxes that are durably built to handle the wear and tear of heavy equipment on construction sites. Unlike some bedding boxes available for sale, our heavy duty GBX Gravel Boxes will add efficiency to your job site and are built to last. Our bedding material containers help to reduce waste and increase speed on the job site.

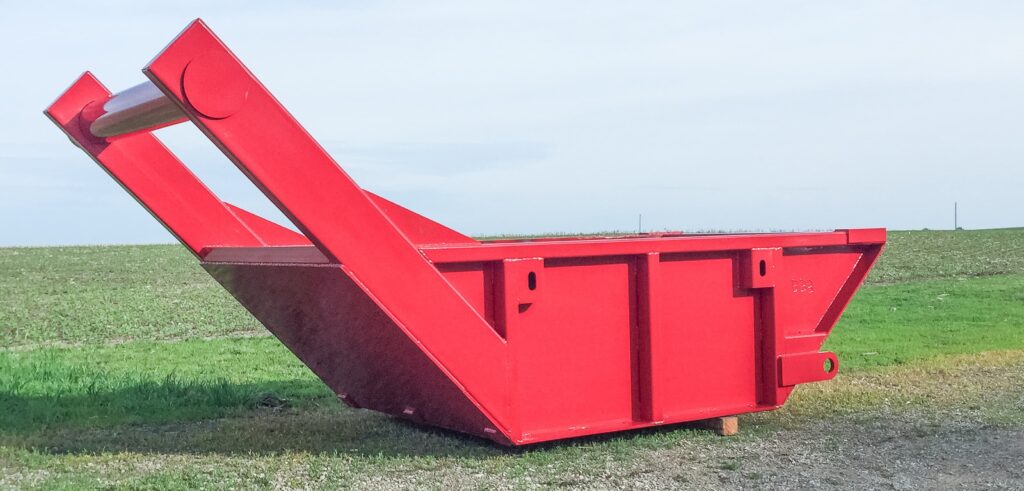

The floors and ends of our boxes are built with a 1/2″ plate. Tear strips are placed on the floor of the bedding box which increases the strength and helps to prevent wear. The formed wear strips located on the bottom of the dump box help prevent plowing while also adding strength and durability. The sides of the GBX Gravel Box are made from a 3/8″ plate and the heavy wall 3″ x 4″ tubing on the sides and ends prevents flexing and punctures.
The grabber tube is an 8″ sch. 80 pipe. Gussets run the entire length of the grabber arm for extra strength. Heavy duty lift points come standard and make an excellent tie down point for transport.
| GBX-5 | GBX-7 | GBX-9 | GBX-12 | GBX-18 | |
| CAPACITY | 5 yd³ | 7 yd³ | 9 yd³ | 12 yd³ | 18 yd³ |
| INSIDE HEIGHT | 36" (91.44 cm) | 48" (121.92 cm) | 48" (121.92 cm) | 48" (121.92 cm) | 60" (152.40 cm) |
| INSIDE WIDTH | 63.25" (160.66 cm) | 63.25" (160.66 cm) | 63.25" (160.66 cm) | 75.25" (191.14 cm) | 87.25" (221.62 cm) |
| INSIDE LENGTH | 116.25" (295.28 cm) | 143.25" (363.86 cm) | 164.25" (417.20 cm) | 183.25" (465.46 cm) | 201.25" (511.18 cm) |
| WEIGHT | 4850 lbs (2199.92 kg) | 6175 lbs (2800.93 kg) | 6675 lbs (3027.73 kg) | 7850 lbs (3560.70 kg) | 9350 lbs (4241.09 kg) |
Technical Specification PDF Download
GBX Gravel Box Brochure
Features
Heavy-Duty GBX Gravel Box for Fast Transport
- High-quality gravel boxes that are durably built to handle the wear and tear of heavy equipment on construction sites.
- Our bedding material containers help to reduce waste and increase speed on the job site.
- Tear strips are placed on the floor of the bedding box which increases the strength and helps to prevent wear.
Details
Burchland manufactures high-quality gravel boxes that are durably built to handle the wear and tear of heavy equipment on construction sites. Unlike some bedding boxes available for sale, our heavy duty GBX Gravel Boxes will add efficiency to your job site and are built to last. Our bedding material containers help to reduce waste and increase speed on the job site.
The floors and ends of our boxes are built with a 1/2″ plate. Tear strips are placed on the floor of the bedding box which increases the strength and helps to prevent wear. The formed wear strips located on the bottom of the dump box help prevent plowing while also adding strength and durability. The sides of the GBX Gravel Box are made from a 3/8″ plate and the heavy wall 3″ x 4″ tubing on the sides and ends prevents flexing and punctures.
The grabber tube is an 8″ sch. 80 pipe. Gussets run the entire length of the grabber arm for extra strength. Heavy duty lift points come standard and make an excellent tie down point for transport.
Specifications
| GBX-5 | GBX-7 | GBX-9 | GBX-12 | GBX-18 | |
| CAPACITY | 5 yd³ | 7 yd³ | 9 yd³ | 12 yd³ | 18 yd³ |
| INSIDE HEIGHT | 36" (91.44 cm) | 48" (121.92 cm) | 48" (121.92 cm) | 48" (121.92 cm) | 60" (152.40 cm) |
| INSIDE WIDTH | 63.25" (160.66 cm) | 63.25" (160.66 cm) | 63.25" (160.66 cm) | 75.25" (191.14 cm) | 87.25" (221.62 cm) |
| INSIDE LENGTH | 116.25" (295.28 cm) | 143.25" (363.86 cm) | 164.25" (417.20 cm) | 183.25" (465.46 cm) | 201.25" (511.18 cm) |
| WEIGHT | 4850 lbs (2199.92 kg) | 6175 lbs (2800.93 kg) | 6675 lbs (3027.73 kg) | 7850 lbs (3560.70 kg) | 9350 lbs (4241.09 kg) |
Downloads
Technical Specification PDF Download
GBX Gravel Box Brochure
Effortlessly Haul and Dump Gravel with the Durable GBX Gravel Box System
Or give us a call at
Frequently Asked Questions
We understand you may have questions about our construction equipment. We are here to provide you with quick and easy answers to the most common inquiries about our products, services, ordering, and more.
What is the GBX Gravel Box used for?
It’s designed for efficient material storage and controlled loading of gravel, soil, and aggregate on construction and grading sites.
What sizes are available?
The GBX is available in models that hold 5 to 18 cubic yards of material, depending on your project needs.
How is the box constructed?
It’s built with a ½″ floor plate, ⅜″ side walls, and reinforced with a heavy-duty tubular steel frame for long-term durability.
Does it resist wear from heavy equipment?
Yes. Floor tear strips and side wear strips protect high-impact areas from bucket and track damage.
Is it easy to move and reposition?
Yes. Fork pockets and lift eyes are integrated into the design for safe and easy handling on-site.
Can it be used with skid steers and loaders?
Absolutely. The GBX is designed for compatibility with common job site equipment like skid steers, wheel loaders, and excavators.
